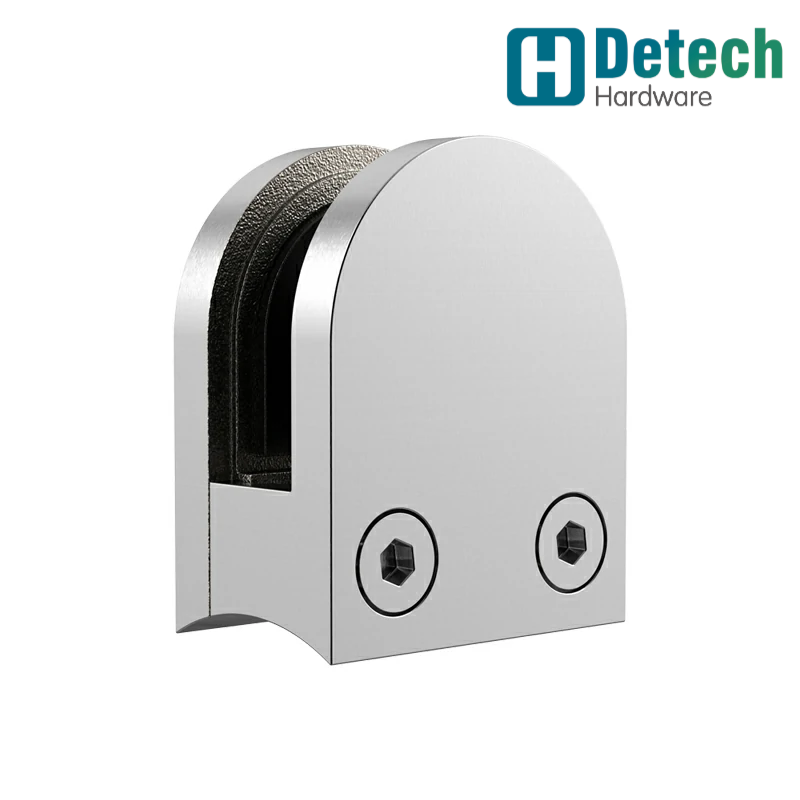

Fish-Mouth Clamp with Curved Solid Base

Short Description:

Part No. DH9003

Glass Thickness: 8-10mm
Weight: 0.2Kg
Outline Dimension: 40mm*25mm*50mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This Solid, Curved-Bottom Fish Mouth Glass Clamp is designed for 8-10 mm glass panels. It is ideal for applications such as glass display cabinets and bathroom partitions, providing a secure, fixed support without the need to drill holes into the glass.

The clamp secures glass panels by gripping their edges with a mechanism shaped like a fish’s mouth. This design allows for easy insertion and removal of the glass while maintaining reliable stability. The curved base helps distribute pressure evenly along the glass edge, reducing the risk of stress points.

Available in a range of sizes, finishes, and designs to suit different glass thicknesses and installation needs, fish mouth glass clamps offer a sleek, modern aesthetic for various architectural and interior applications.

Glass Clamp Specifications

Product Name	No Hole Curved Bottom Fish Mouth Clamp
Outline Dimension	40mm25mm50mm
Glass Thickness	8-10mm
Weight	0.20Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
