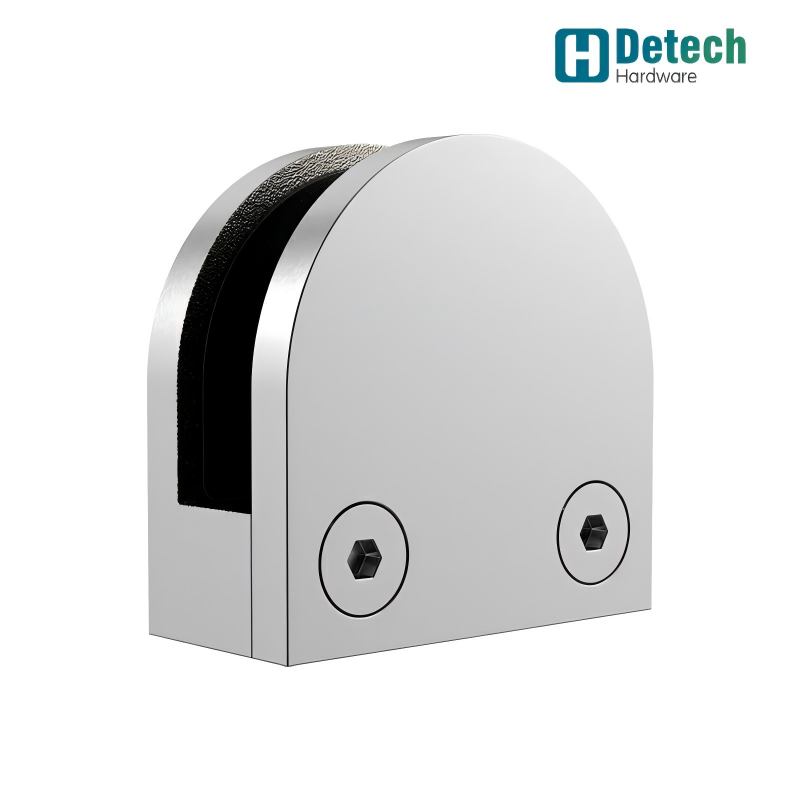

No Hole Flat Bottom Fish Mouth Clamp

Short Description:

Part No. DH9015P

Glass Thickness: 8-12mm
Weight: 0.26Kg
Outline Dimension: 55mm*25mm*55mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

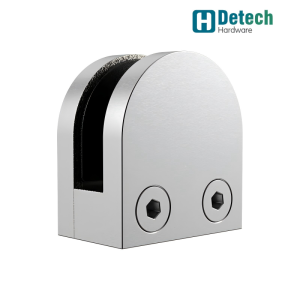

The Solid Flat-Bottom Fish Mouth D-Clamp provides a secure, hole-free mounting solution for glass railing systems, eliminating the need for drilling and preserving the panel’s structural integrity. This not only reduces the risk of breakage during installation but also ensures a clean, minimalist aesthetic.

Featuring a unique combination of a flat base and a fish mouth grip, the clamp delivers exceptional stability. The flat bottom ensures even weight distribution and full-surface contact, while the fish mouth design enhances clamping force, holding the glass firmly and securely in place.

Suitable for 8–12mm glass panels, this D-clamp is available in a range of sizes and finishes to accommodate different design and thickness requirements. Its durable construction and reliable performance make it ideal for both commercial and residential applications, offering a safe, visually appealing, and long-lasting solution for modern glass installations.

Glass Clamp Specifications

Product Name	No Hole Flat Bottom Fish Mouth Clamp
Outline Dimension	55mm25mm55mm
Glass Thickness	8-12mm
Weight	0.26Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
