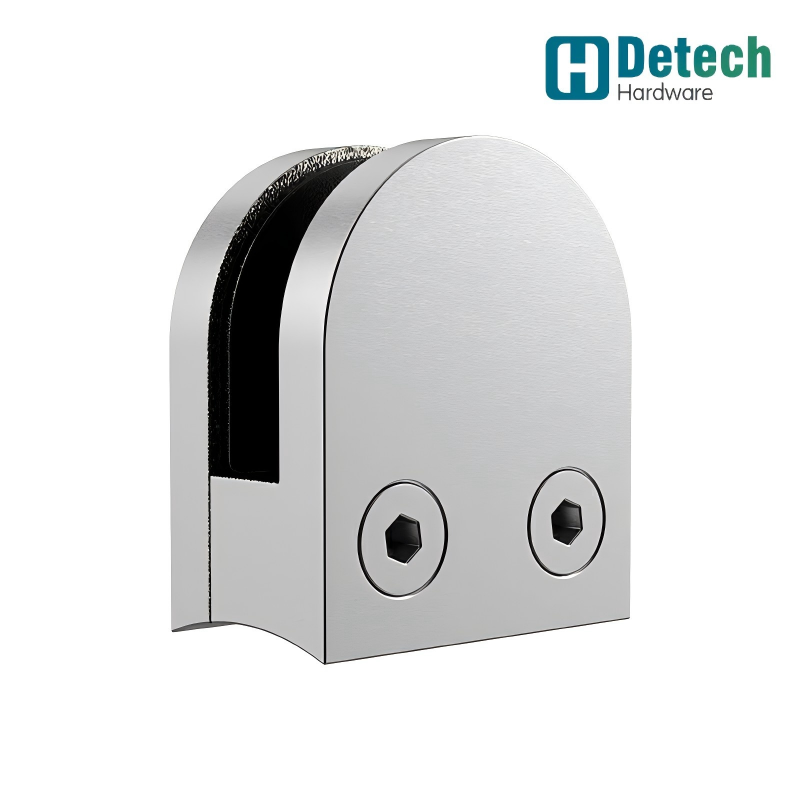

Solid, Curved-Bottom Fish Mouth Clamp

Short Description:

Part No. DH9013

Glass Thickness: 6mm
Weight: 0.08Kg
Outline Dimension: 30mm*22mm*52mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This Solid, Curved-Bottom Fish Mouth Glass Clamp is engineered to provide a secure, hole-free grip for 6mm glass panels. It is ideally suited for a range of applications, including glass display cabinets, bathroom partitions, fixed brackets, and stair railings.

The clamp’s defining feature is its curved, fish mouth-shaped base, which ensures a firm and stable hold on the glass without the need for drilling. This innovative, non-invasive design preserves the structural integrity of the glass during installation.

To accommodate diverse design requirements, the clamp is both versatile and adaptable. It is compatible with a range of glass thicknesses, offering flexibility in material selection. Furthermore, it is available in various curvature profiles to seamlessly fit different curved glass designs—from gentle arcs to tighter bends.

Glass Clamp Specifications

Product Name	No Hole Curved Bottom Fish Mouth Clamp
Outline Dimension	30mm22mm52mm
Glass Thickness	6mm
Weight	0.08Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
