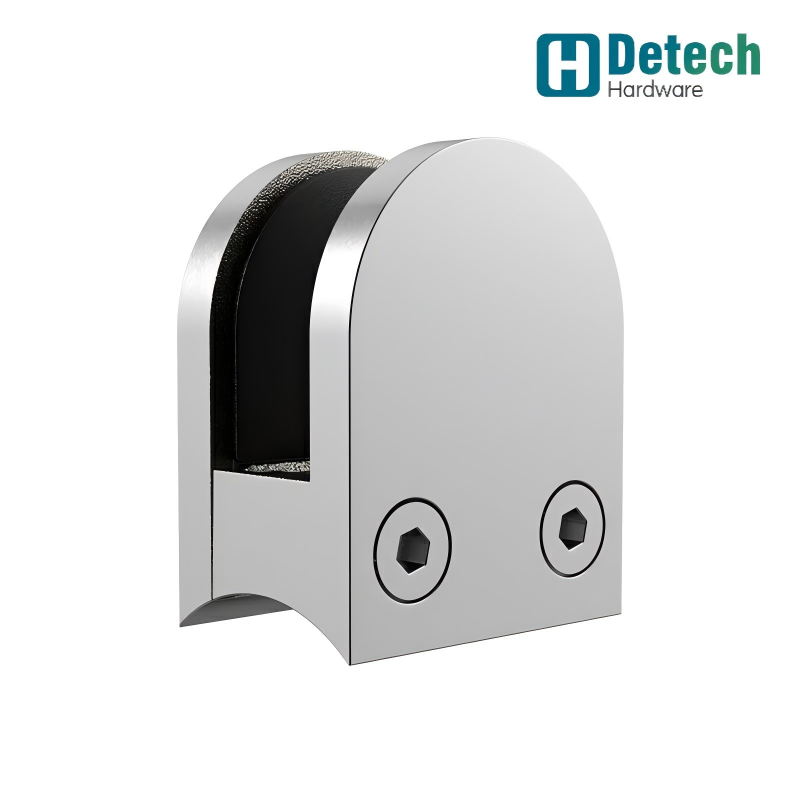

No Hole Curved Bottom Fish Mouth Clamp

Short Description:

Part No. DH9023

Glass Thickness: 12mm
Weight: 0.21Kg
Outline Dimension: 40mm*28mm*50mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This 316 Stainless Steel Solid Glass Clamp is engineered for secure, hole‑free mounting of 12mm glass panels in applications such as display cabinets, bathroom partitions, fixed brackets, and stair railings.

Constructed from high‑quality 316 stainless steel, the clamp offers exceptional corrosion resistance—making it suitable for demanding indoor and outdoor environments, including coastal or high‑humidity settings. Its curved bottom and fish‑mouth design work together to increase the contact area with the glass, delivering a strong, stable grip without the need for drilling. This not only reduces the risk of glass damage during installation but also ensures a clean, minimalist appearance.

Designed specifically for 12mm glass, the clamp is available in multiple finishes and design variations to accommodate different aesthetic preferences and installation requirements, providing both durability and visual flexibility.

Glass Clamp Specifications

Product Name	No Hole Curved Bottom Fish Mouth Clamp
Outline Dimension	40mm28mm50mm
Glass Thickness	12mm
Weight	0.21Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
