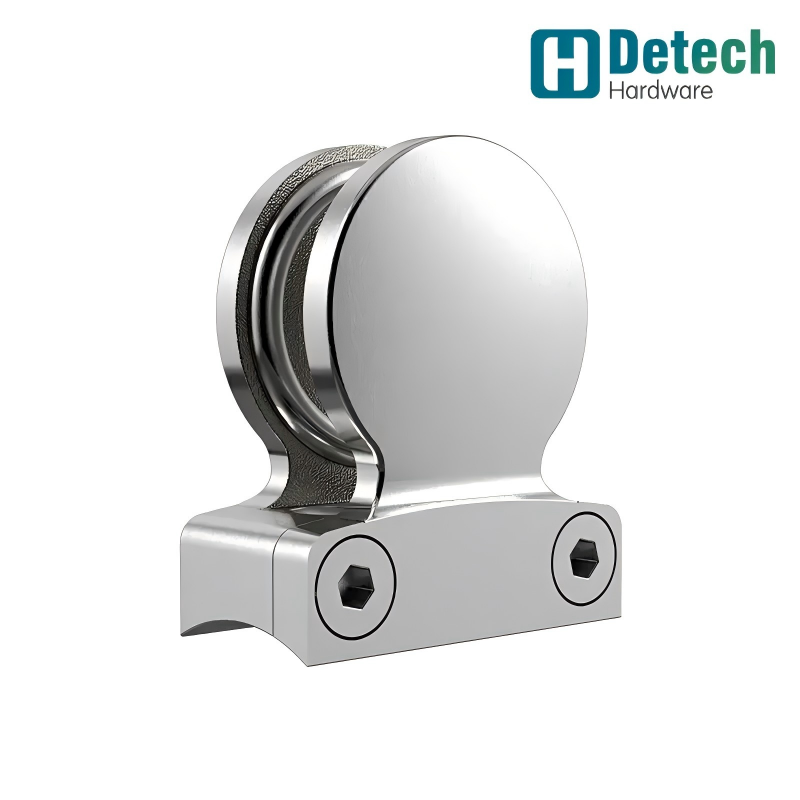

Solid Fish Mouth Clamp with Curved Base

Short Description:

Part No. DH9007

Glass Thickness: 8-10mm
Weight: 0.16Kg
Outline Dimension: 44mm*22mm*52mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This Solid, Curved-Bottom Fish Mouth Glass Clamp provides a secure, hole-free solution for 8–10 mm glass panels. It is ideally suited for applications such as glass display cabinets, bathroom partitions, fixed brackets, and stair railings.

The clamp’s unique “fish mouth” mechanism grips the glass edge firmly, allowing for easy installation and removal without compromising stability. Its curved base distributes pressure evenly along the glass, reducing stress points, while the smooth round profile delivers a clean, modern look that complements a variety of architectural styles.

Constructed from durable, corrosion-resistant materials, these clamps are suitable for both indoor and outdoor use. They are available in multiple finishes—including polished stainless steel, brushed stainless steel, and black—offering design flexibility to meet different aesthetic and functional requirements.

Glass Clamp Specifications

Product Name	No Hole Round Curved Bottom Fish Mouth Clamp
Outline Dimension	44mm22mm52mm
Glass Thickness	8-10mm
Weight	0.16Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
