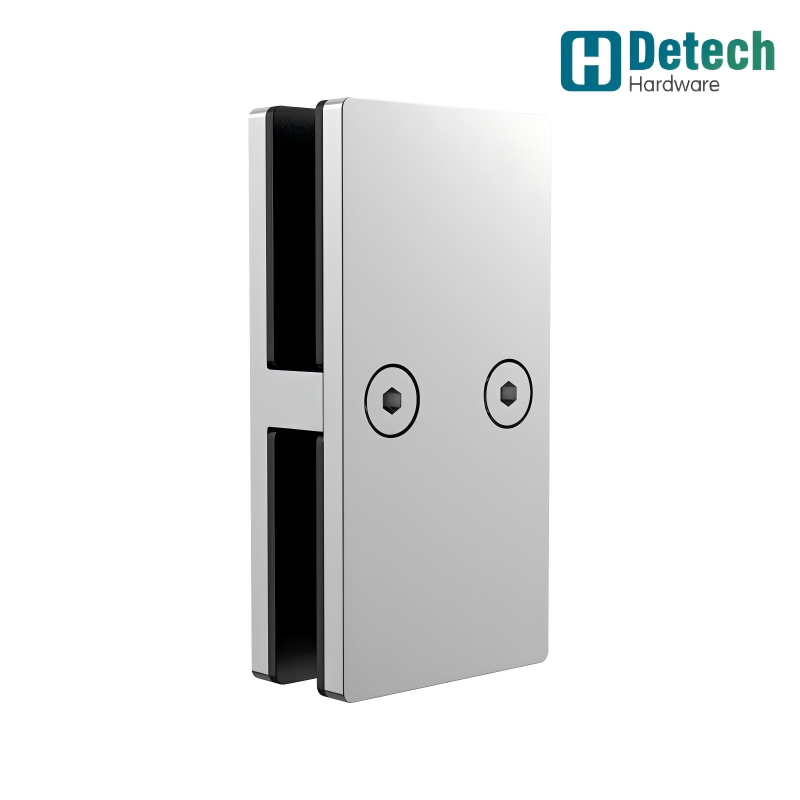

No-hole 180° Double-ended Square Head Clamp

Short Description:

Part No. DH9018

Glass Thickness: 10mm
Weight: 0.39Kg
Outline Dimension: 50mm*23mm*100mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This Solid, Double-Ended Square Head Glass Clamp is engineered to join two 10mm glass panels at a seamless 180-degree angle without the need for drilling. It provides a clean, frameless connection for applications such as bathroom partitions, fixed brackets, and stair balustrades.

The clamp’s double-ended square head design ensures a rigid and secure fixation, preventing slippage while maintaining a sleek, minimalist appearance. Constructed from durable, corrosion-resistant materials, it offers long-term reliability in various environments.

By creating a clear, unobstructed corner, this 180-degree clamp preserves visual continuity and maximizes light flow. It is available in multiple finishes and design variants to suit different aesthetic preferences, glass thicknesses, and installation requirements.

Glass Clamp Specifications

Product Name	No-hole 180° Double-ended Square Head Clamp
Outline Dimension	50mm23mm100mm
Glass Thickness	10mm
Weight	0.39Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
