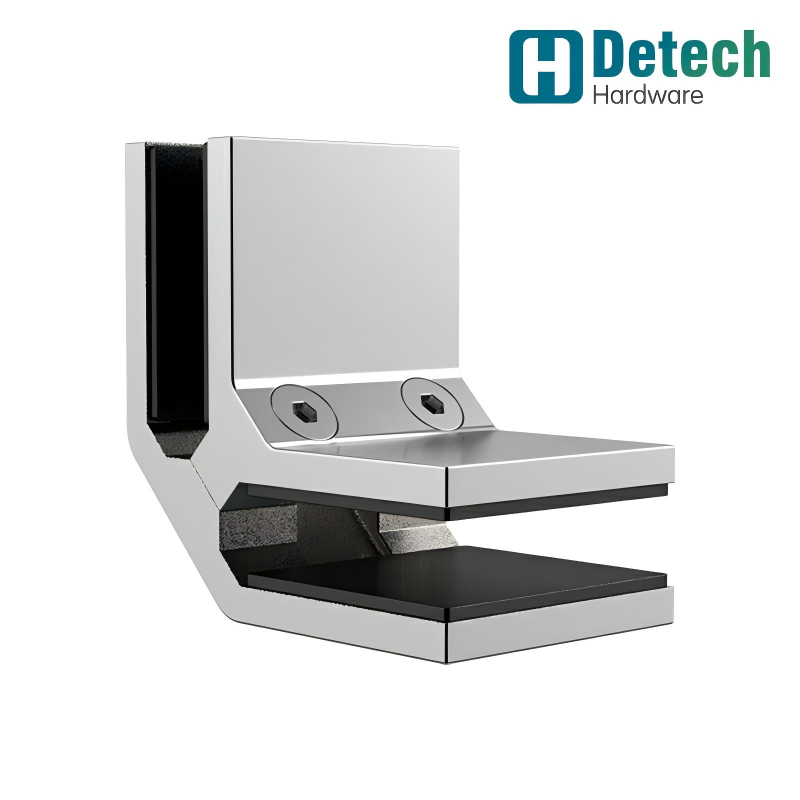

No-hole 90° Double-ended Square Head Clamp

Short Description:

Part No. DH9017

Glass Thickness: 12mm
Weight: 0.58Kg
Outline Dimension: 50mm*28mm*76mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This 90° Solid Glass Clamp securely joins two 12mm glass panels at a right angle without the need for drilling. Designed for frameless glass railings, it is ideal for applications such as staircases, balconies, decks, and other architectural installations requiring a clean corner joint.

The clamp features a double-ended square head design that provides a robust, low-profile connection, ensuring panel stability while maintaining a sleek, minimalistic appearance. Its precise 90-degree corner creates seamless transitions in modern glass structures.

Constructed from high-strength stainless steel, the clamp offers excellent corrosion and abrasion resistance for long-term durability in both indoor and outdoor settings. Available in multiple finishes, it combines structural performance with a discreet, architectural aesthetic.

Glass Clamp Specifications

Product Name	No-hole 90° Double-ended Square Head Clamp
Outline Dimension	50mm28mm76mm
Glass Thickness	12mm
Weight	0.58Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
