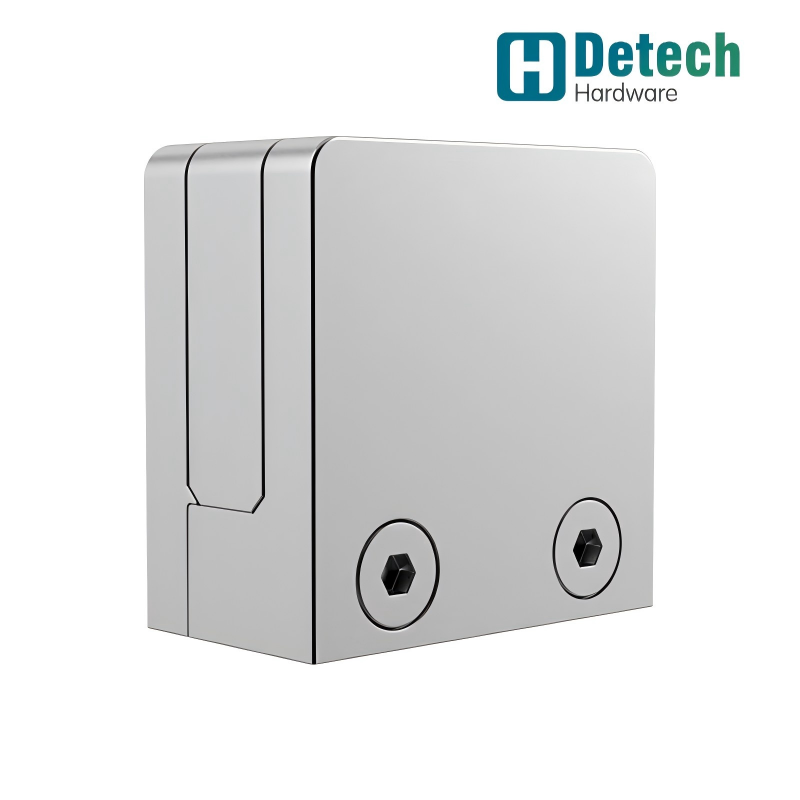

Flat Bottom Square Clamp

Short Description:

Part No. DHCS200

Glass Thickness: 8-12mm
Weight: 0.32Kg
Outline Dimension: 54mm*30mm*55mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This Flat-Bottom Square Glass Clamp, constructed from stainless steel, provides a secure and elegant mounting solution for 8–12mm glass panels. It is ideally suited for a variety of glass railing applications—including balconies, staircases, and decks—where reliable support and a clean finish are essential.

Featuring a flat base for maximum stability and a square profile for a minimalist look, the clamp ensures firm glass retention while contributing to a sleek, contemporary aesthetic. Its design seamlessly complements modern architectural styles.

Available in multiple sizes and finishes, this SS clamp can be tailored to different glass thicknesses and installation requirements, offering both functional versatility and a cohesive design element for glass structures.

Glass Clamp Specifications

Product Name	Flat Bottom Square Clamp
Outline Dimension	54mm30mm55mm
Glass Thickness	8-12mm
Weight	0.32Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
