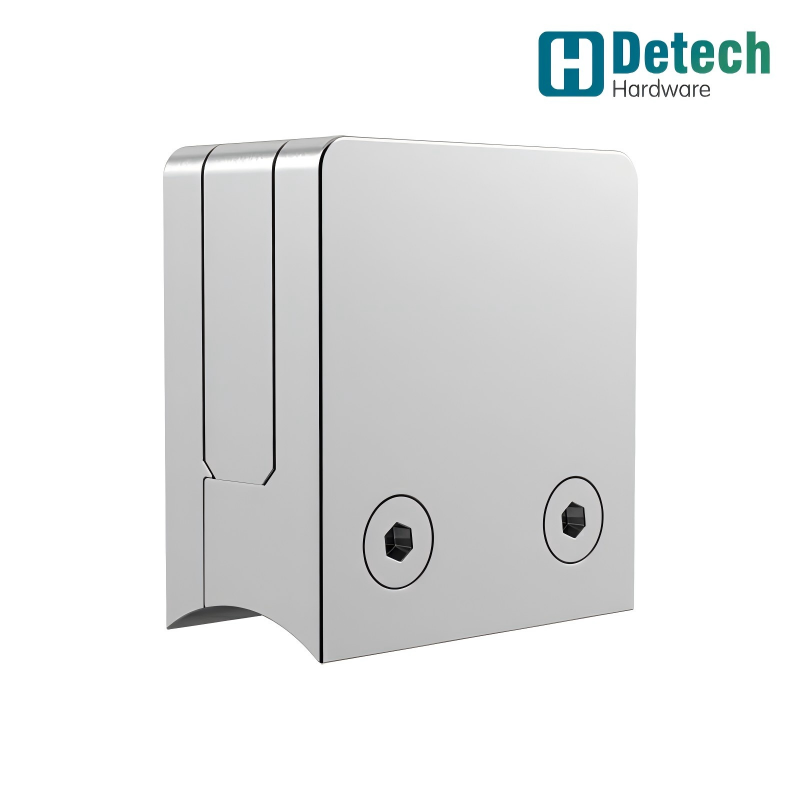

Flat Bottom Square Clamp

Short Description:

Part No. DHCS200R

Glass Thickness: 8-12mm
Weight: 0.34Kg
Outline Dimension: 54mm*30mm*60mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This Flat-Bottom Square Glass Spigot Clamp provides a stable, surface-mounted support solution for 8–12mm glass panels. It is designed for a variety of glass railing applications, including balconies, decks, staircases, and terraces, ensuring secure attachment through straightforward installation.

Featuring a flat base for enhanced stability and anti-slip performance, the clamp firmly holds the glass panel in place. Its square profile contributes a modern, minimalist aesthetic that complements contemporary architectural designs.

As a ground- or surface-mounted point fixture, the spigot clamp delivers reliable structural support while maintaining clean, unobtrusive sight lines. It is available in multiple sizes to accommodate different installation requirements and glass thicknesses.

Glass Clamp Specifications

Product Name	No Hole Curved Bottom Fish Mouth Clamp
Outline Dimension	45mm30mm69mm
Glass Thickness	8-12mm
Weight	0.27Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
