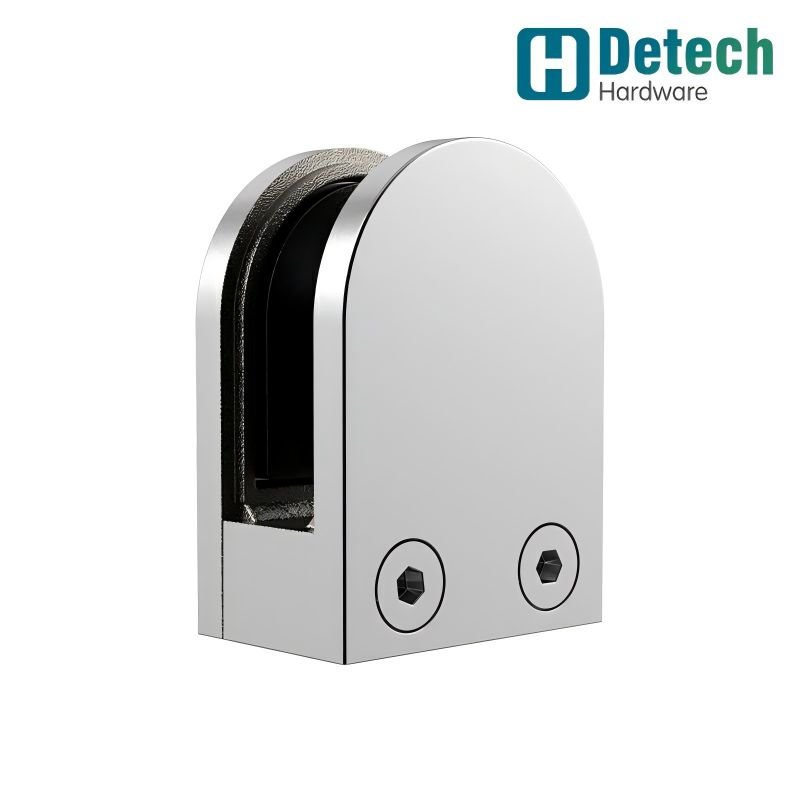

Solid Flat-Bottom Fish Mouth Clamp

Short Description:

Part No. DHCR200

Glass Thickness: 8-12mm
Weight: 0.24Kg
Outline Dimension: 45mm*30mm*64mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

This Solid Flat-Bottom Fish Mouth Glass Clamp provides a secure, hole-free mounting solution for 8–12mm glass panels. It is designed for applications where both structural integrity and aesthetics are essential, such as glass balustrades, railings, partitions, and other architectural installations.

The clamp employs a unique fish mouth jaw design that firmly grips the glass edges, offering reliable structural support while keeping the glass itself as the visual focal point. Its flat base ensures stable contact and even pressure distribution, minimizing stress on the glass surface and preventing damage.

Available in multiple sizes and designs to accommodate various glass thicknesses and installation needs, this clamp combines functional security with a clean, unobtrusive appearance for modern glass structures.

Glass Clamp Specifications

Product Name	No Hole Flat Bottom Fish Mouth Clamp
Outline Dimension	45mm30mm64mm
Glass Thickness	8-12mm
Weight	0.24Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
