No Hole Curved Bottom Fish Mouth Clamp

Short Description:

Part No. DHCR200R

Glass Thickness: 8-12mm
Weight: 0.27Kg
Outline Dimension: 45mm*30mm*69mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

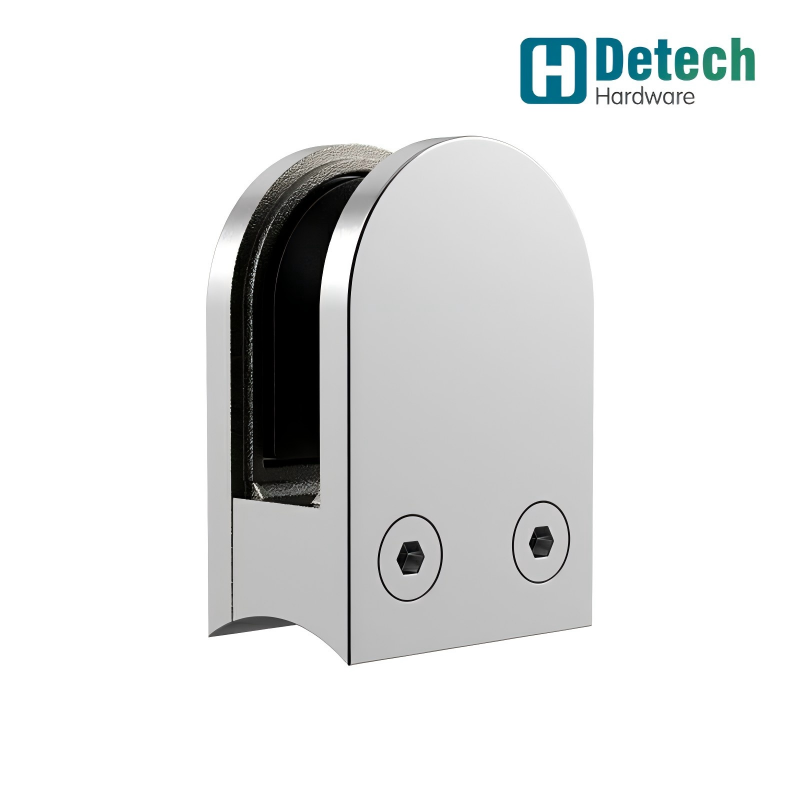

This Solid, Curved-Bottom Fish Mouth Glass Clamp, crafted from 316 stainless steel, provides a secure, hole‑free mounting solution for 8–12mm glass panels. It is suitable for a wide range of indoor and outdoor applications, delivering both reliable performance and a modern, clean aesthetic.

Renowned for its exceptional corrosion resistance, 316 stainless steel ensures long‑term durability even in demanding environments, including coastal and high‑humidity settings. The clamp’s fish mouth jaw design securely grips the glass edge, while its curved bottom conforms to the glass surface, enhancing both the contact area and pressure distribution for maximum stability.

The absence of pre‑drilled holes allows for a seamless, invisible mounting point, preserving the glass integrity and offering a minimalist finish. Available in multiple sizes to accommodate various glass thicknesses, this clamp combines structural security with design flexibility for contemporary architectural projects.

Glass Clamp Specifications

Product Name	No Hole Curved Bottom Fish Mouth Clamp
Outline Dimension	45mm30mm69mm
Glass Thickness	8-12mm
Weight	0.27Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
