No-hole F-type Square Head Clamp

Short Description:

Part No. DH-C-S90W

Glass Thickness: 12mm
Weight: 0.38Kg
Outline Dimension: 50mm*26mm*60mm
Material: 2205/304/316
Application: Glass Display Case, Glass Fence, Glass Staircase

Product Detail

Product Tags

Glass Clamp Description

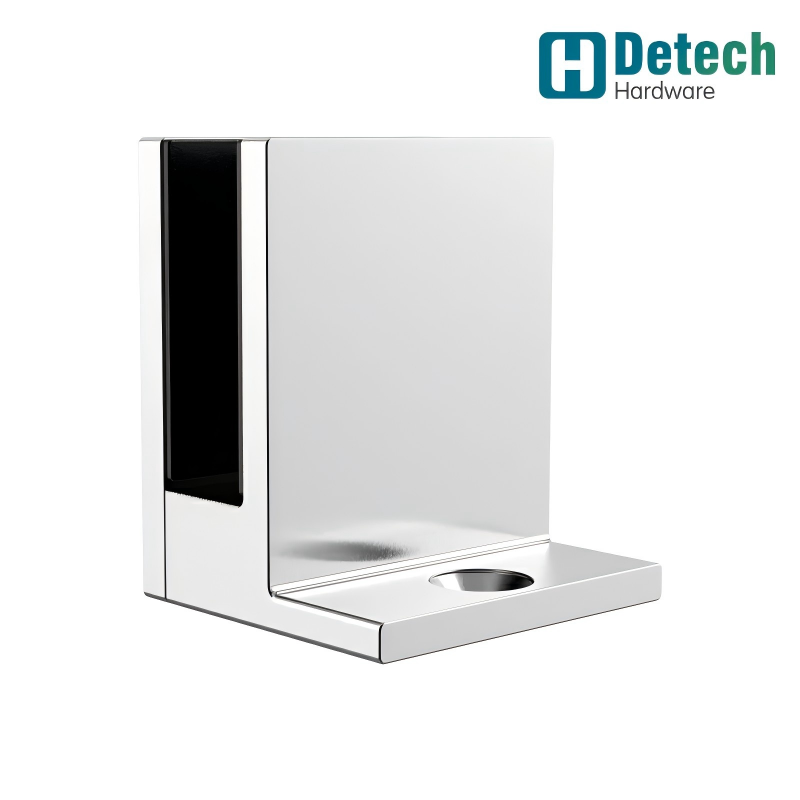

This Solid Square-Head F-Clamp provides a secure, hole-free mounting solution for 12mm glass panels. It is designed for robust applications such as glass balustrades, railings, partitions, and other architectural structures, offering reliable fixation and a clean, modern aesthetic.

The clamp features a distinctive F-shaped profile with a square head, ensuring a strong, stable grip on the glass. Its solid, no-hole design eliminates the need for pre-drilling, resulting in a seamless installation with no visible fasteners. The clamp can be mounted to walls, posts, floors, ceilings, or other surfaces, providing exceptional flexibility for various configurations.

Constructed from durable, corrosion-resistant materials, it is built to last with minimal maintenance. The minimalist F-shape complements contemporary designs, making it an ideal choice for projects that prioritize both structural integrity and visual subtlety.

Glass Clamp Specifications

Product Name	No-hole F-type Square Head Clamp
Outline Dimension	50mm26mm60mm
Glass Thickness	12mm
Weight	0.38Kg
Finish	Classic Satin/Mirror Powder Coat Matte Black/White PVD-Black/Gold/Rose Gold/Gun Grey (We can do anti-fingerprint if necessary.) Anti-conductive Black/White Transparent Satin/Mirror
Material	Duplex stainless steel 2205, Stainless steel 304/316
Application	Glass Display Case, Glass Fence, Glass Staircase
Casting Process	Siica Sol Technics With Lost-wax Process
Certifications	Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000
OEM	Available
Annual Output	2000MT
Tooling Leadtime	2--4 Weeks
Delivery Time	4--5 Weeks
