Zigzag Stair Balustrade Spigot for 12mm Glass (DH-STR-GS)

Short Description:

Part No. DH-STR-GS


  • Glass Thickness: 12mm
  • Weight: 2.2KG

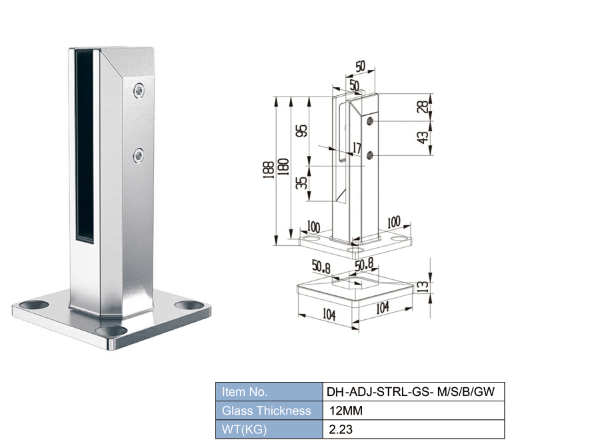

  • Outline Dimension: 188*104*104(mm)
  • Material: 2205/304/316
  • Application: Staircase

Product Detail

Product Tags

Zig Zag 12mm Glass Spigot Description

This zigzag floor-mounted glass spigot is specifically engineered for 12mm-thick glass panels, featuring a staircase-adapted design that mounts directly to floor surfaces—delivering a sleek, modern aesthetic to frameless glass structures. Installed securely via screws or bolts, it anchors firmly to the floor substrate for reliable structural support.

Crafted from high-quality stainless steel, this 12mm frameless glass spigot boasts exceptional corrosion and weather resistance, making it ideal for both indoor and outdoor applications. Available in a range of sizes and finishes, it offers versatile customization to align with diverse staircase designs and architectural styles.

Glass Spigot Specifications

Product Name

Zig-zag Stairs Glass Spigot

Outline Dimension

188mm*104mm*104mm

Glass Thickness

12mm

Weight

2.20Kg

Finish

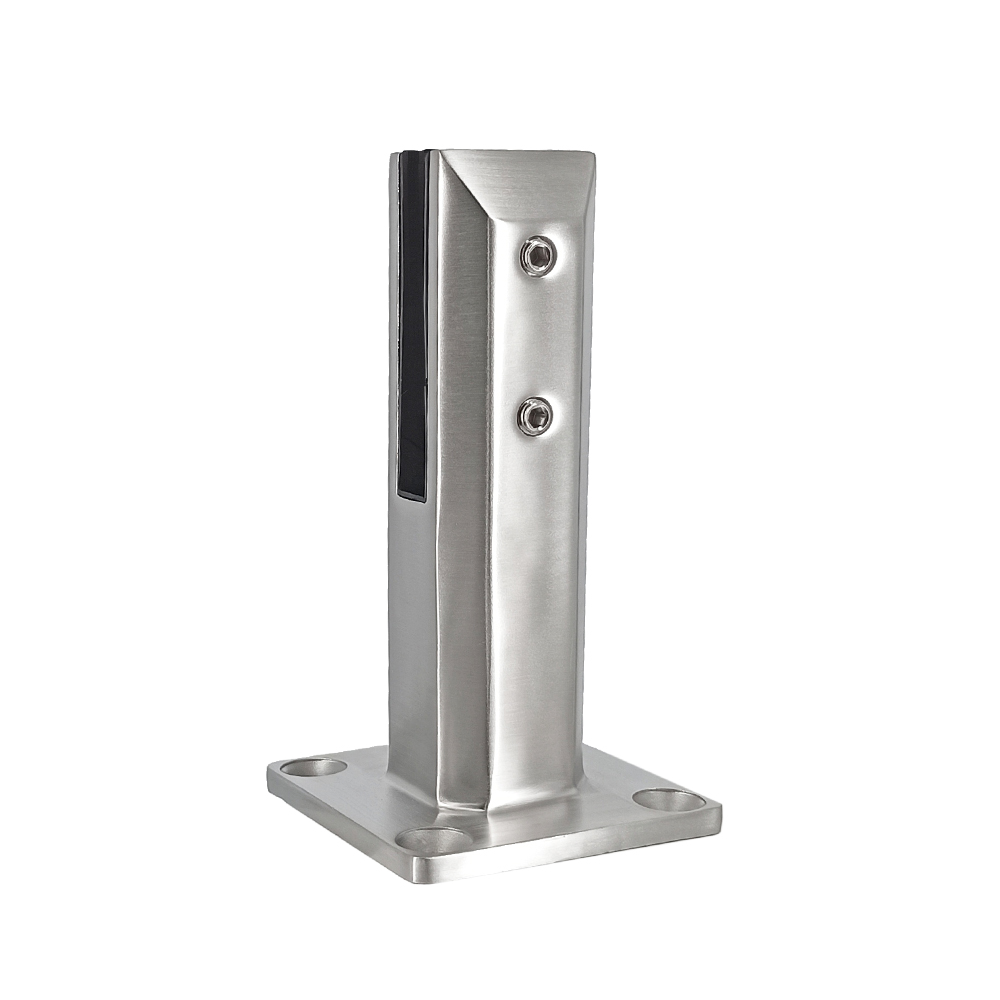

Classic Satin/Mirror

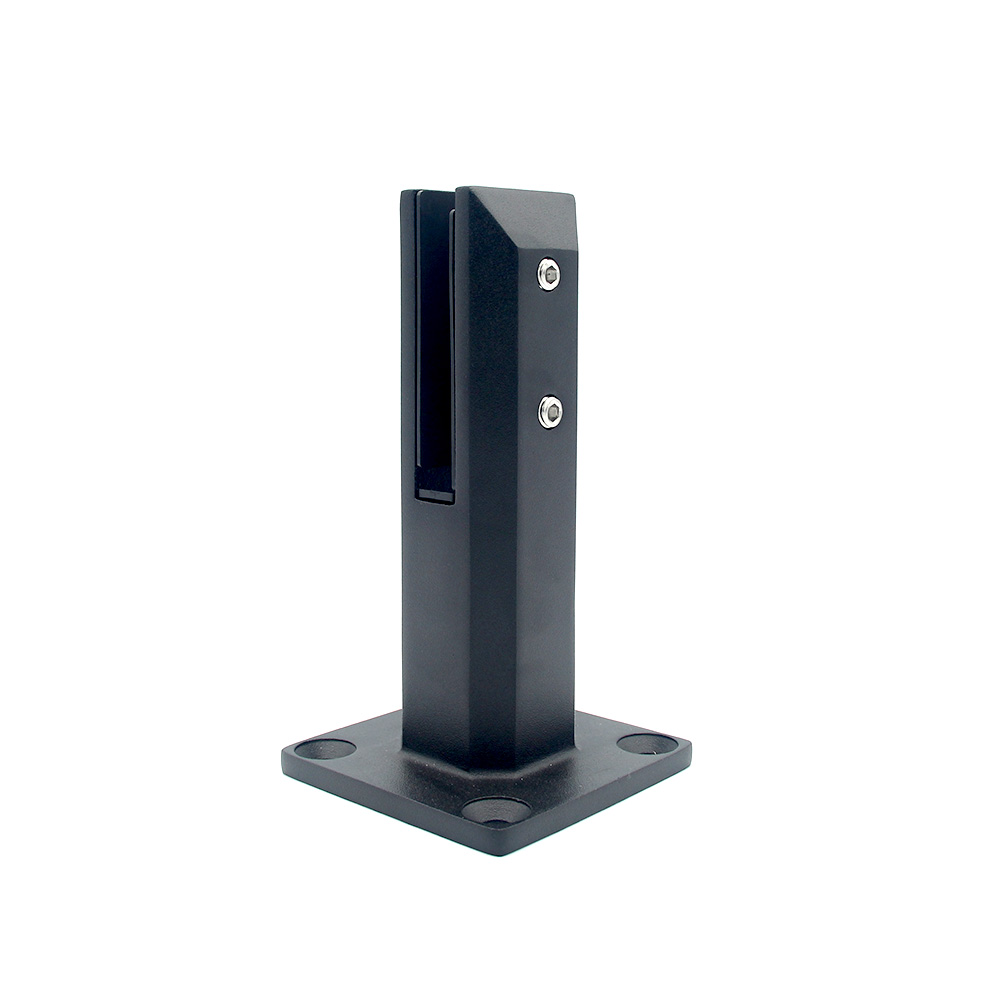

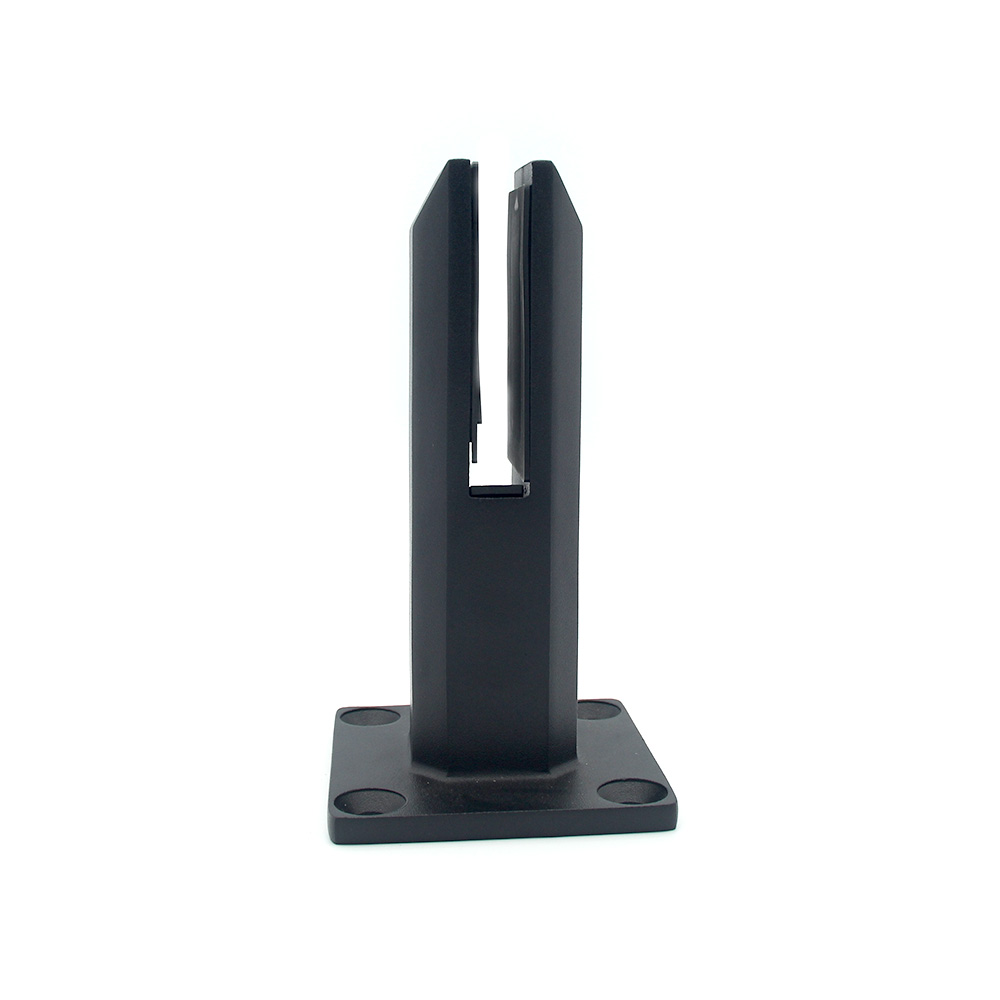

Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Staircase

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week
