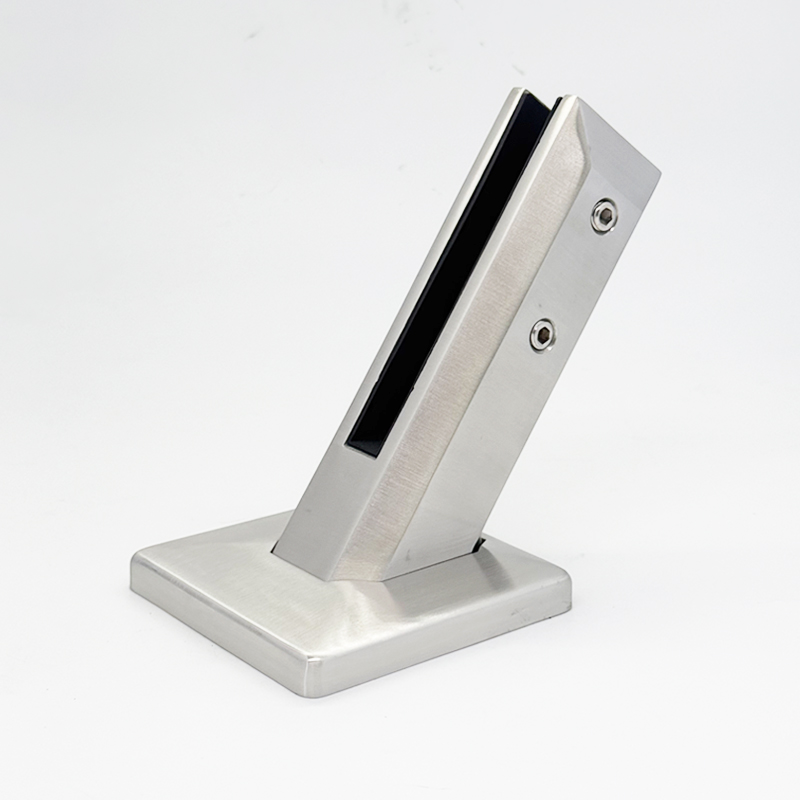

Detech Angled Base Floor Glass Spigot (Balustrade)
Glass Spigot Description(DH-BVL-GS)

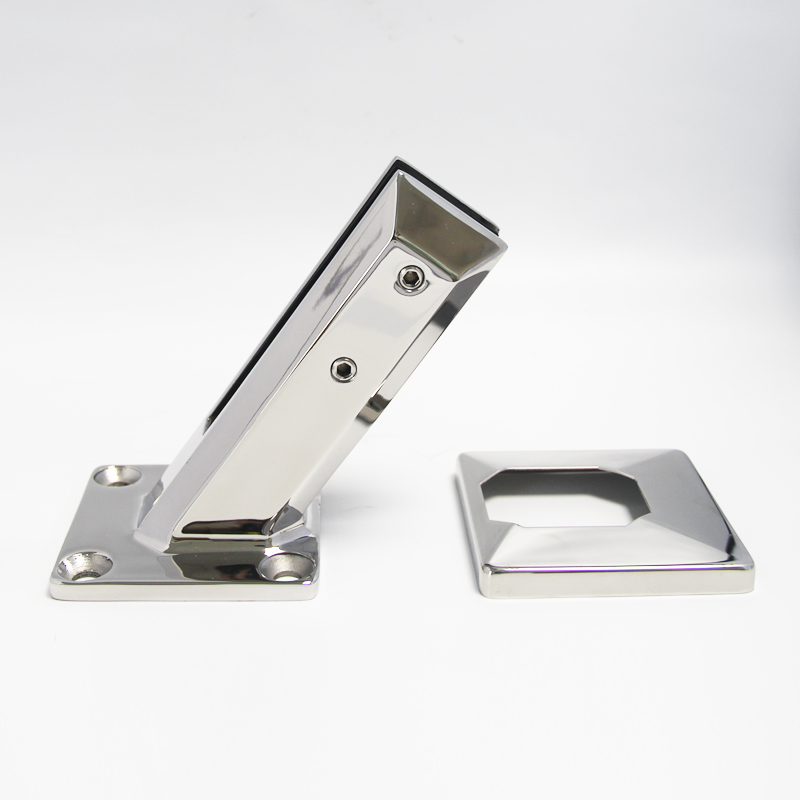

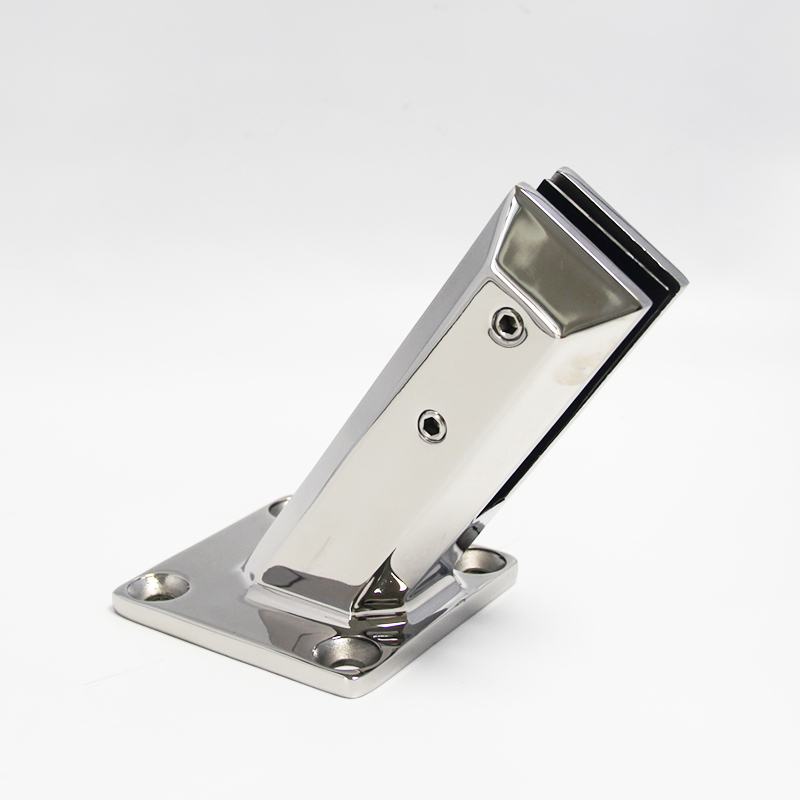

This angled-base floor-mounted black glass spigot is specifically engineered for glass panels up to 12mm thick. Designed for direct installation on floor surfaces, it enables glass panels to be attached at an angle relative to horizontal floors—creating unique, visually striking designs suitable for diverse applications.We offer customization of the threaded hole orientation to meet customers’ specific requirements, making it ideal for staircase railings. Additionally, the sloped base design enhances ease of cleaning and simplifies long-term maintenance.
Glass Spigot Specifications
Product Name | Angled Base Floor Glass Spigot |
Outline Dimension | 200mm*104mm*104mm |
Glass Thickness | 12mm |
Weight | 2.23Kg |
Finish | Classic Satin/Mirror |
Material | Duplex Stainless Steel 2205, Stainless Steel 304/316 |
Application | Bevel / Slop |
Casting Process | Siica Sol Technics Lost-wax Process |
Certifications | Australian Standard Test/Patent Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000 |
OEM | Available |
Annual Output | 2000MT |
Tooling Leadtime | 2--4 Weeks |
Delivery Time | 4--5 Weeks |
