Heavy-Duty Square In-ground Glass Spigot for Balustrades(DH188C)

Short Description:

Part No. DH188C


  • Glass Thickness: 12mm
  • Weight: 2.11KG
  • Outline Dimension: 285*104*104(mm)
  • Material: 2205/304/316
  • Application: Pool

Product Detail

Product Tags

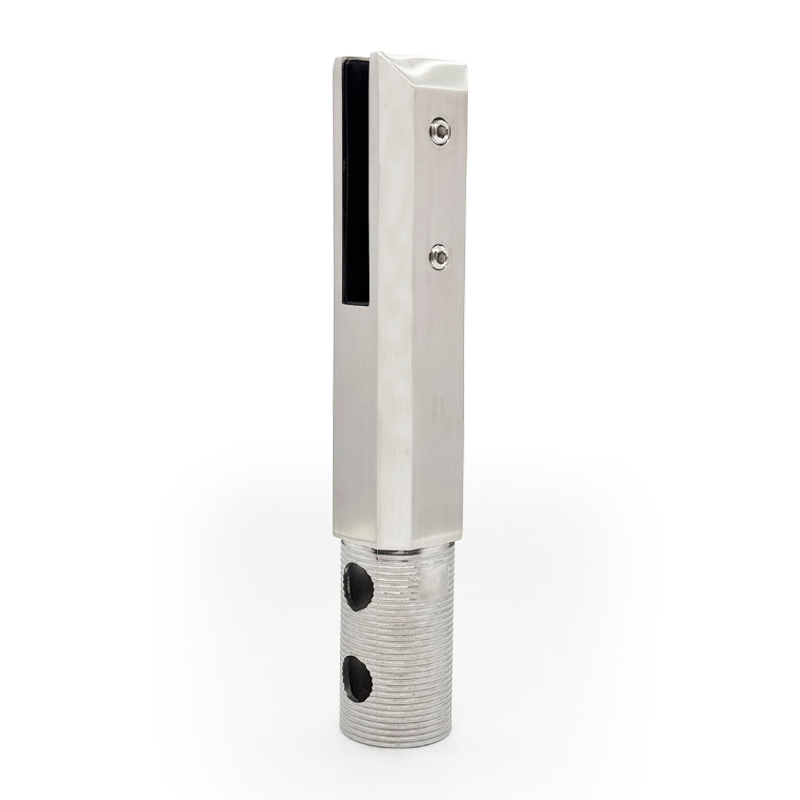

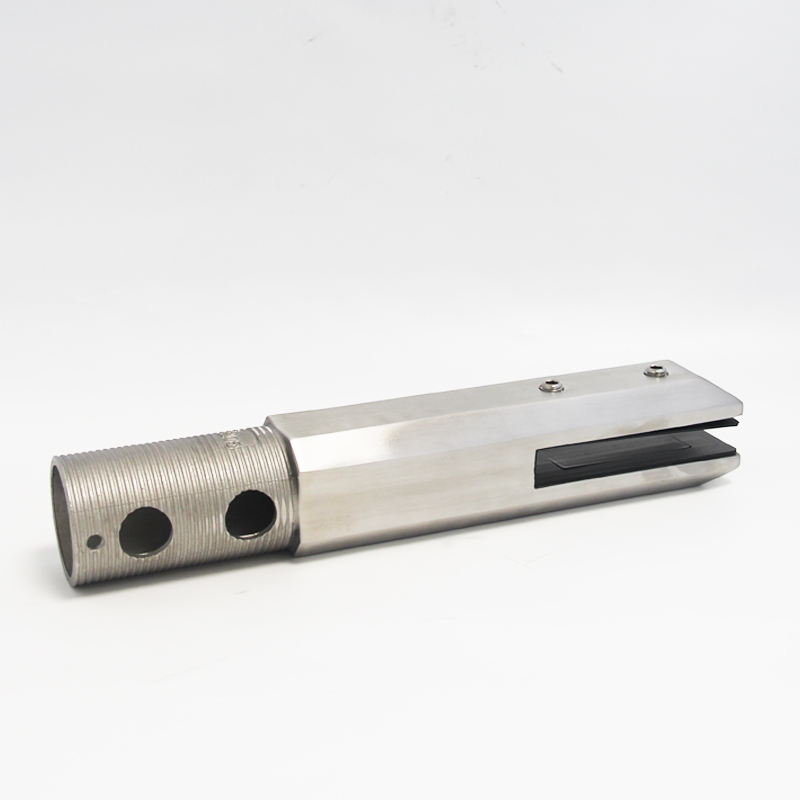

Glass Spigot Description


This square in-ground glass balustrade spigot is engineered for 12mm-thick glass, making it well-suited for a wide range of outdoor applications, including outdoor glass railings, fences, balcony guardrails, swimming pool guardrails, staircase handrails, and garden guardrails.

Stainless steel glass balustrade spigots are available in a diverse array of designs, tailored to meet various installation requirements and aesthetic preferences. Structurally, they consist of cylindrical posts that are firmly attached to the ground or a supporting structure, serving as reliable supports for glass panels. A key design feature is their base plate, which is intended to be mounted into the floor—this creates a flush, seamless appearance that enhances the overall neatness and modernity of the installation.

Versatile in application, glass balustrade spigots can be paired with multiple glass panel thicknesses and styles, such as tempered glass, laminated glass, and patterned glass. Additionally, they offer a selection of finishes, including brushed stainless steel, polished stainless steel, and black. These finish options not only complement different decorative styles but also elevate the visual appeal of the entire balustrade system, ensuring it integrates harmoniously with surrounding spaces.


Glass Spigot Specifications

Product Name

Heavy-Duty Square In-ground Glass Spigot for Balustrades

Outline Dimension

285mm*104mm*104mm

Glass Thickness

12mm

Weight

2.11Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Pool/Glass Balustrade

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week
