Dual-Function 90° Square Spigot: Efficient 2-in-1 Glass Support (DH-DOSD-90)

Short Description:

Part No. DH-DOSD-90


  • Glass Thickness: 12mm
  • Weight: 1.89KG
  • Outline Dimension: 143*94*105(mm)
  • Material: 2205/304/316
  • Application: Glass Railing, Pool Fence, Balustrades, etc

Product Detail

Product Tags

Glass Spigot Description

The 2-for-1 square glass spigot—also referred to as a 2-way square glass clamp or 2-way glass standoff—is a specialized hardware component engineered to securely fasten two glass panels to vertical surfaces. Its innovative "2-for-1" design enables the connection of two glass panels at a right angle using just one spigot, minimizing the number of required hardware pieces and streamlining the installation process.

Specifically suited for 12mm-thick glass, this square glass spigot is ideal for glass railings, pool fences, balustrades, and similar applications. Beyond its functional advantages, its clean square silhouette delivers a modern, sleek aesthetic that seamlessly complements contemporary architectural designs.

Glass Spigot Specifications

Product Name

90° 2 for 1 Square Glass Spigot

Outline Dimension

143mm*94mm*120.5mm

Glass Thickness

12mm

Weight

1.89Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Glass Railings, Pool Fences, Balustrades, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week

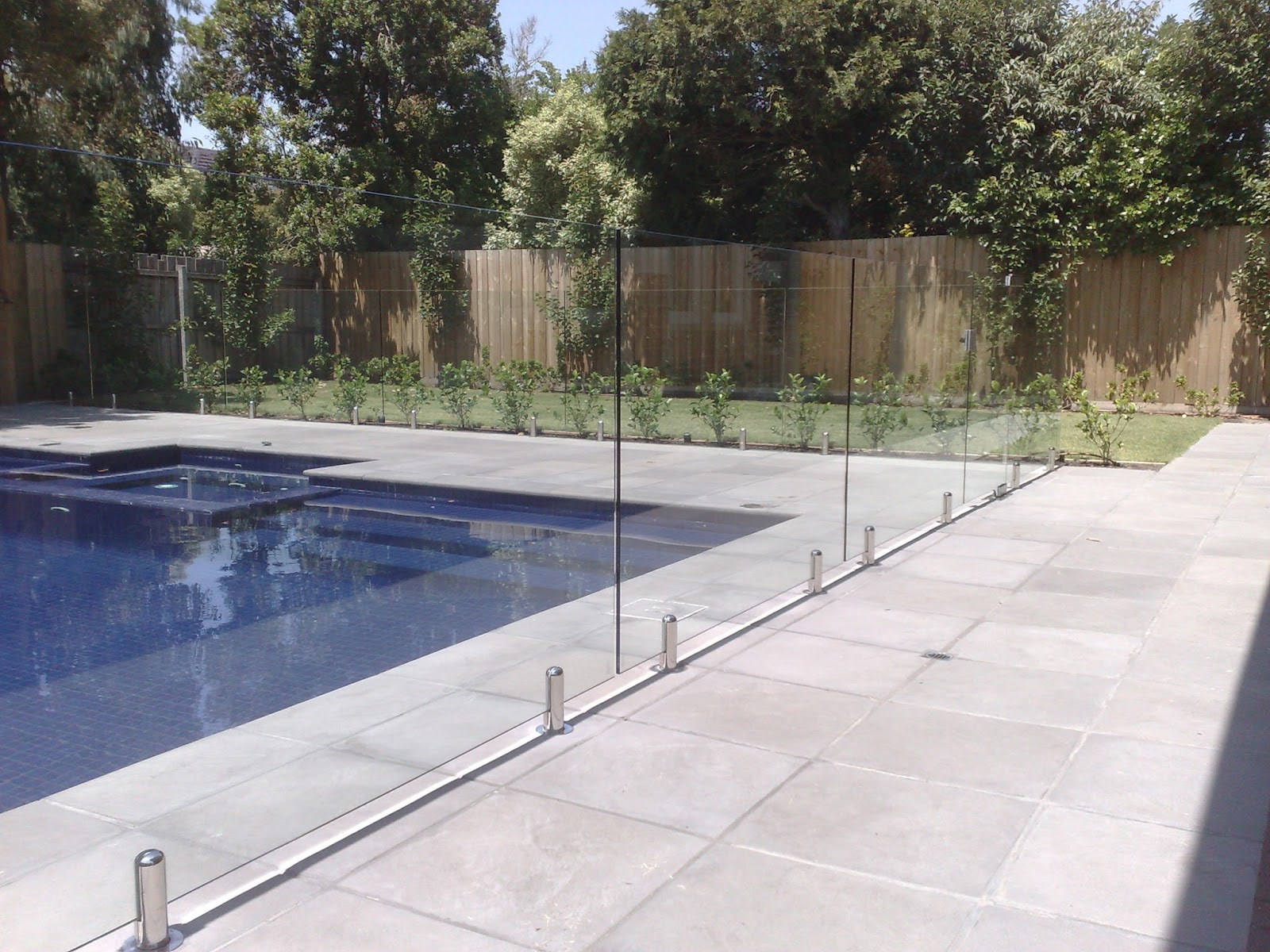

diy glass pool fencing.jpg
