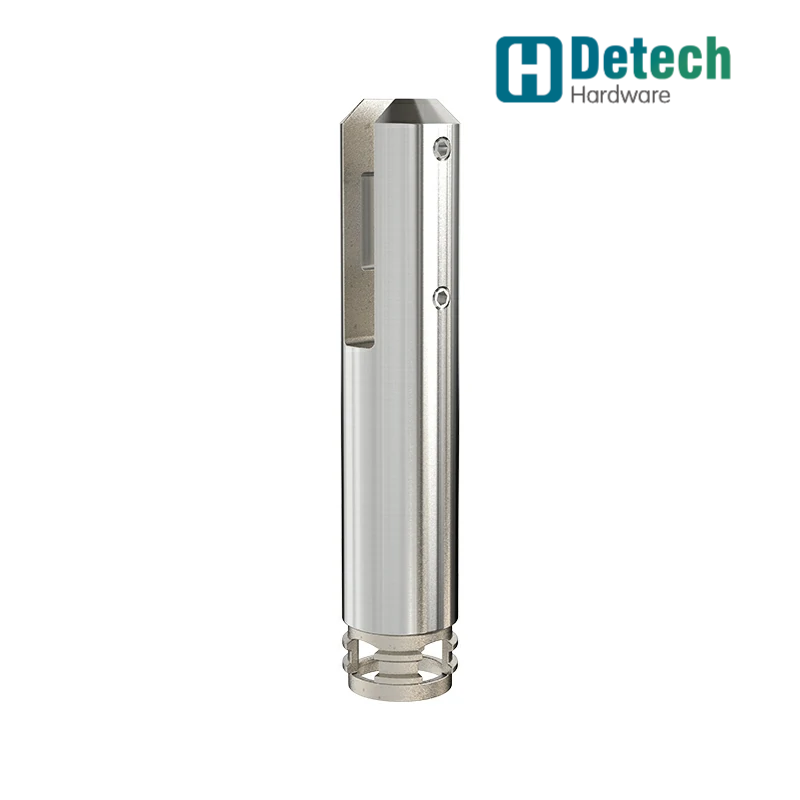

Post Round In-ground Glass Spigot

Short Description:

Part No. DH-LS-DRC


  • Glass Thickness: 12-15mm
  • Weight: 1.96KG
  • Outline Dimension: 250mm*50mm
  • Material: 2205/304/316
  • Application: Outdoor glass railing, Fence, Balcony railing, Pool fence, Stair handrail, Garden fence, etc.

Product Detail

Product Tags

Glass Spigot Description

This Post In-Ground Glass Spigot provides a cost-effective, secure foundation for 12-15mm thick glass in frameless handrail systems. Ideal for outdoor applications such as pool fencing, balconies, decks, and staircases, it is engineered to meet necessary load-bearing requirements while utilizing a weight-optimized design to enhance value.

Installed by embedding into the ground, it offers a stable anchor point. The glass panel is secured at the top via a clamp or screw mechanism. This streamlined approach eliminates the need for additional posts, resulting in a clean, minimalist appearance. Multiple finish options are available to suit various design aesthetics.


Glass Spigot Specifications

Product Name

Post In-ground Glass Spigot

Outline Dimension

250mm*50mm

Glass Thickness

12-15mm

Weight

1.96Kg

Finish

Classic Satin/Mirror
Powder Coat Matte Black/White
PVD-Black/Gold/Rose Gold/Gun Grey
Anti-conductive Black/White
Transparent Satin/Mirror

Material

Duplex Stainless Steel 2205, Stainless Steel 304/316

Application

Outdoor Glass Railing, Fence, Balcony Railing, Pool Fence, Stair Handrail, Garden Fence, etc.

Casting Process

Siica Sol Technics Lost-wax Process

Certifications

Australian Standard Test/Patent

Certificate/IATF16949/ISO9001/ISO14001/TUV/PED/AD2000

OEM

Available

Annual Output

2000MT

Tooling Leadtime

2--4 Week

Delivery Time

4--5 Week
